Lengthsman's Cottage

Simply built with limewash finish

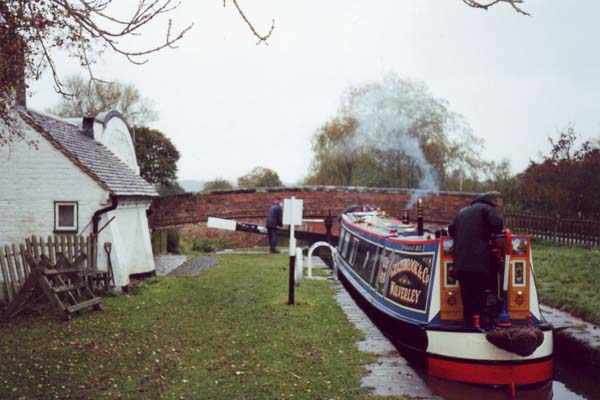

Things have changed a great deal since the Industrial Revolution, but today Lengthsman's is a sociable spot where you can relax and watch narrowboats negotiate the lock. The construction of the Stratford-upon-Avon canal began in 1793, during the heady days after the French Revolution. Its projecteers did not foresee the credit squeeze that followed the opening of hostilities against Napoleon, but fortunately, an astute local land agent called William James stepped into the breach to complete the southern stretch of the canal, which includes Lowsonford. Working with engineer William Whitmore, James cut costs dramatically. His engineers, more accustomed to building bridges than houses, simply adapted the techniques they knew best to house the men who worked on the canal, building them snug, barrel-roofed cottages next to the locks they supervised.

A rare feature on Britain's canals

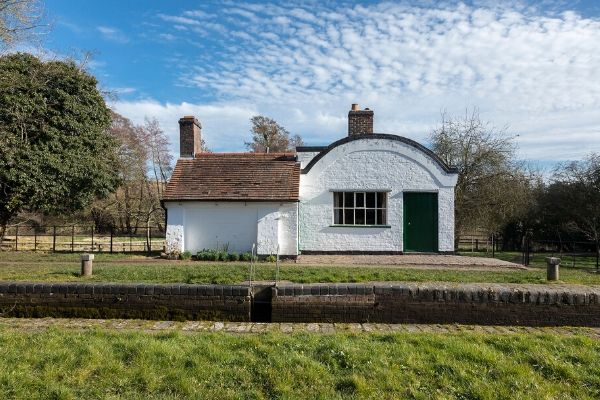

Barrel-roofed cottages are few and far between on our canals and the South Stratford canal has one of the best sets to survive. Six were built originally, between Lapworth and Preston Bagot. Landmark’s cottage at Lock 31, now known as Lengthsman’s Cottage, is the least altered from its original form. It was known first as the Lock House, then more recently simply as Ned’s Cottage, after Ned Taylor who lived here for most of his eight decades. We acquired the Cottage in 1992 when the National Trust took on this stretch of the canal, which passes through gentle Warwickshire. In 2006 we needed only to refurbish the cottage and it is now preserved as a rare example of the expedients adopted in those years when the Industrial Revolution was changing the face of Britain.

We have named it Lengthsman’s Cottage after the lengthsmen (or often lengthsman) who cared for a ‘length’ of canal and its towpath. It also allows us to distinguish between Landmark’s other Lock Cottage at Stoke Pound on the Worcester canal.

The South Stratford canal was built between 1812 and 1816, to link the river Avon into the main Midland canal network. The northern stretch of the canal came first, between Birmingham and the junction with the Warwick to Birmingham section of the Grand Union at Kingswood, constructed by engineer Josiah Clowes after an Act of Parliament in 1793. This was the great age of canal building, in the years just before steam, when waterways were seen as the transport of the future. Great profits were expected by investors – but the Napoleonic Wars put paid to that, as the country’s economy moved onto a war footing. Credit was squeezed and the cost of raw materials soared. By the time the canal reached Hockley Heath in 1796 the budget for the entire route through to Stratford had already almost been spent.

The scheme was in deep financial trouble, but in 1797 a bright local land agent named William James became involved. James re-surveyed the line and a further Act in 1799 enabled more funds to be raised. By 1802, the 18 locks down from the summit at Hockley Heath to Kingswood had been completed and the junction to the Warwick & Birmingham canal accomplished – but then work stalled again. James, however, had a vision of an integrated transport network and did not give up on the idea of linking the canal to the Avon. Backed by credit he had built up on other activities, he bought out other shareholders.

In 1812, he was able to start work on the southern section, under William Whitmore as engineer. James and Whitmore saw that cost control on the northern section had been somewhat lax. They introduced (perfectly serviceable) cost cutting measures and it is these that give the South Stratford canal its unique character.

Farm lanes were bridged not with brick arches but with prefabricated, cast iron split bridges These allowed the towrope to pass between the two leaves, the horse walking up and over the narrow bridge, so there was no need for a wider span to take the towpath. Stretches of narrow gauge railway were used to haul bricks and the tons of excavated spoil cheaply and efficiently over soft ground. Locks were reduced to a single narrowboat’s width, with single-leaf gates at either end, halving their cost. The cottages built to house the men who would care for the canal were built using the materials and techniques already available for bridge-building – simple rectangular brick boxes spanned by iron ties and brick vaults. The one at Lowsonford does not even have foundations, standing simply on the puddle clay used to seal the waterway. The cost of each cottage fell from £150 to £80, yet snug and durable dwellings were created that have stood the test of time. By 1813, the canal had reached Wootten Wawen, suggesting that Lengthsman’s Cottage was built around 1812-3, and in 1816 the long-awaited link with the Avon was achieved.

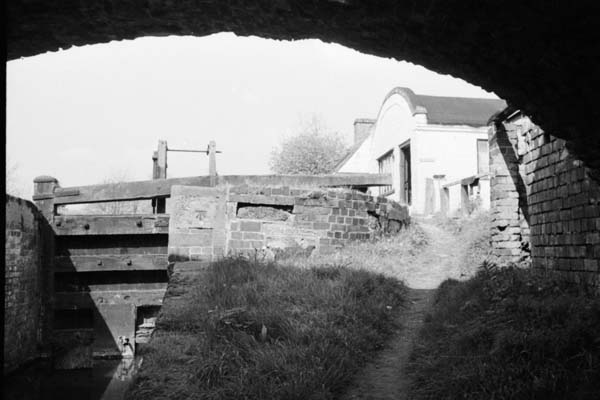

Yet steam came hard on the heels of the canals and their heyday was brief. By the mid-19th century, the waterways were already on the decline, bought up by the new railway companies who cared less for their maintenance than investing in the rail network. By the 1900s, the South Stratford was already a backwater bypassed by the Grand Union, which lay above a tortuous stretch of locks for those travelling northwards from Stratford. By 1947, when authors and Inland Waterways Association campaigners L. T. C. Rolt and Robert Aickman applied for passage through the bridge at Lifford Lane, the whole Stratford canal was all but impassable to narrowboats. Then in 1958, Warwickshire County Council applied for a Warrant of Abandonment for the canal, on the grounds that no boat had used it in the past three years. Fortunately, two canoeists were able to provide licenses proving that they had used the canal in that time – and so began a campaign to save it.

In 1960 the National Trust took on the South Stratford and employed a local architect and canal enthusiast, David Hutchings, to oversee its restoration for leisure use. The project became a celebrated example of canal restoration, achieved mainly by non-skilled labour – volunteers, prisoners from Winson Green, Royal Engineers, boys from Borstals, TocH: all played their part. In 1964, as part of the quarter-centenary celebrations of Shakespeare’s birth, the South Stratford was re-opened to traffic by Her Majesty the Queen Mother.

Meanwhile, through all these years of decline and rebirth, Ned Taylor had been quietly living in the Cottage at Lock 31. Born in 1921, Ned was one of a family of 11 children. The Taylors’ tenancy survived the various changes of ownership of the canal in the 20th century and when in 1992 the National Trust transferred the canal to British Waterways and the Cottage to Landmark, we also took on Ned’s life tenancy. The National Trust had somewhat modernised the Cottage when they took over the canal in 1960, but Ned’s needs were modest and so the Cottage survived without the larger extensions added to the other barrel-roofed dwellings.

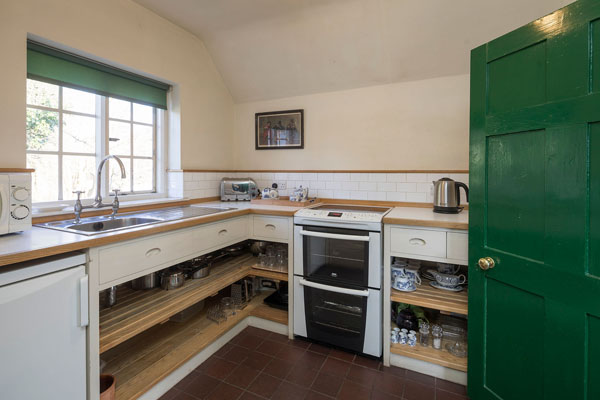

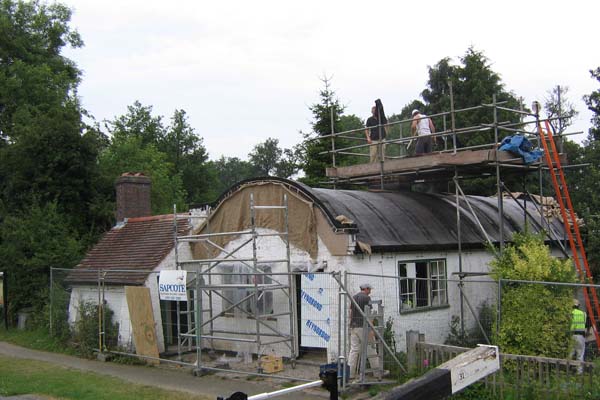

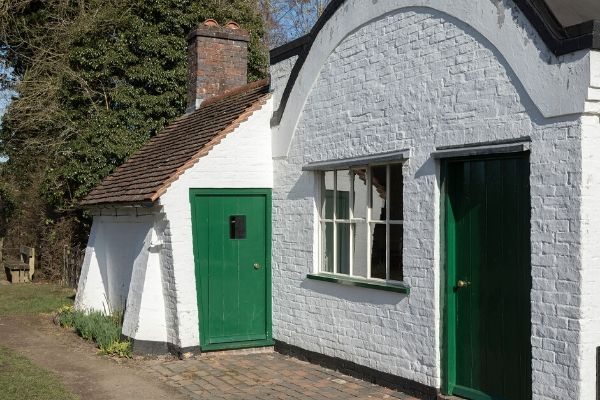

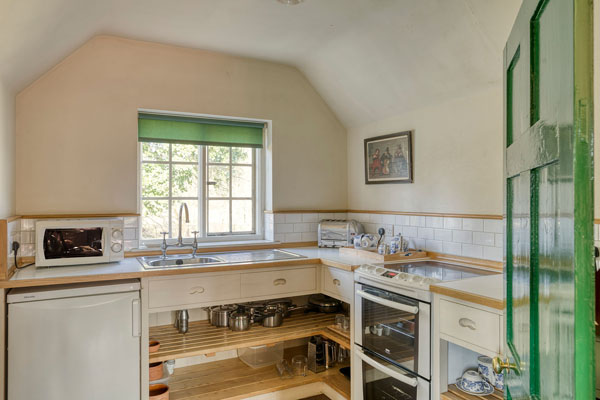

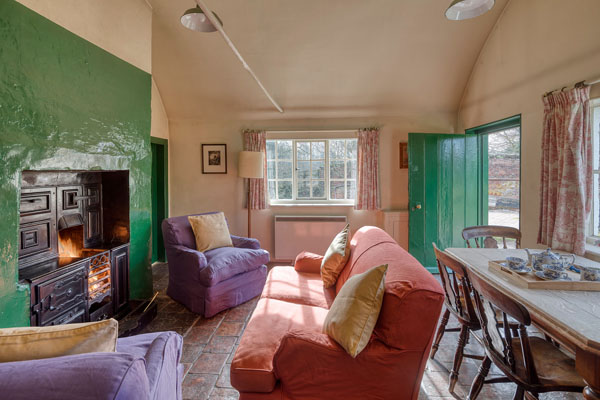

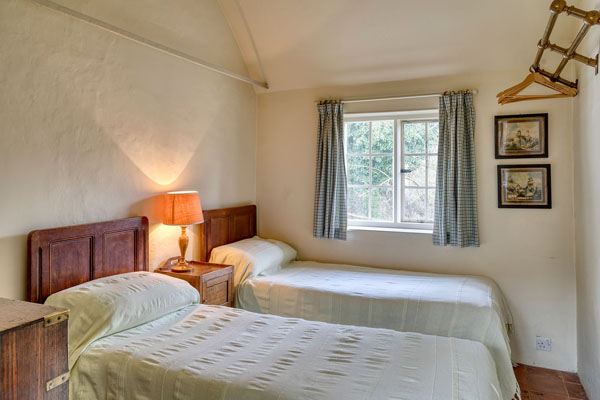

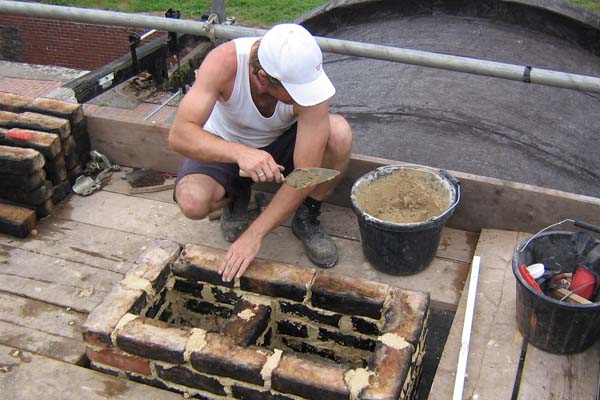

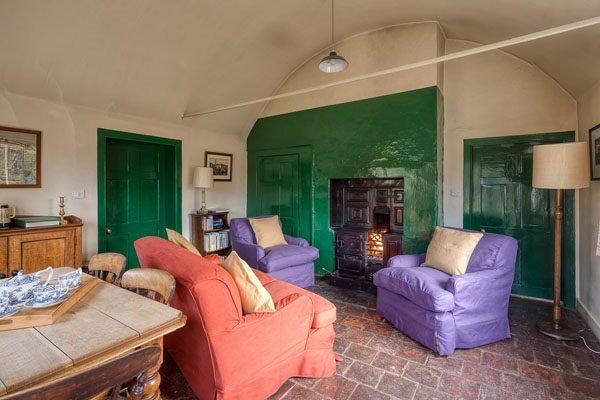

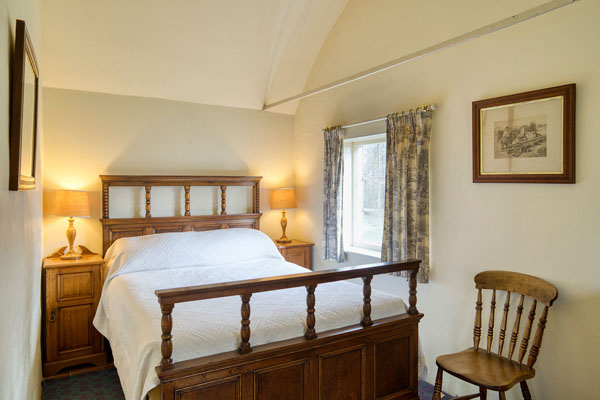

The Cottage seems always to have been limewashed at most, rather than entirely rendered. Internally we kept the original cast iron range, as well as the practical gloss paint finishes of Ned’s time and the insulating plasterboard installed to the walls by the National Trust. We re-wired the Cottage, fitted a new kitchen and new night storage and water heaters. The sitting room and rear lobby floors are as we found them. Floors in the bedrooms are new Norfolk pammets and those in the kitchen and entrance lobby are modern quarry tiles as found. New iron casements were made for the windows to match the single surviving original that faces the canal. The garden and trees were neatened and a new fence put up. In Landmark’s care, the Cottage will continue to play its part in this congenial conjunction of canal, road and village, testimony to William James’s exemplary value-engineering.
